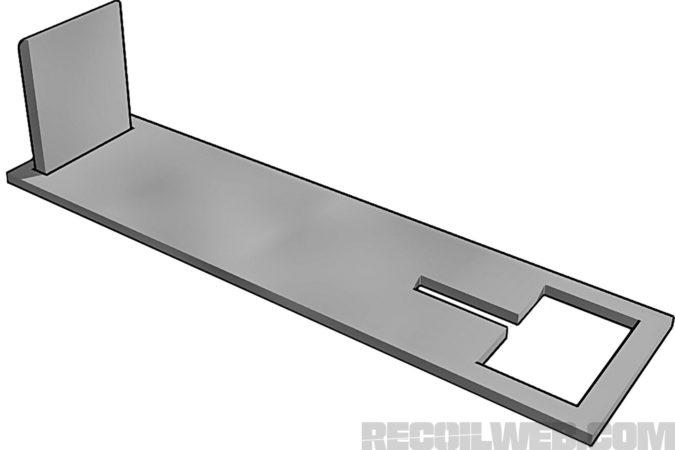

Diy Turning Your AR-15 into an M-16 Mike Searson February 13, 2024 20 Comments, Join the Conversation At RECOIL, we review every product fairly and without bias. Making a purchase through one of our links may earn us a small commission, and helps support independent gun reviews. Learn More Photos by Dave MerrillLegal Warning: The following article is for educational and informational purposes only. Building a machinegun in the United States is illegal unless the builder happens to be a Special Occupation Taxpayer and manufacturer.In late 2017, in Issue 34, I wrote an article about the various “full-auto simulators” that were available at the time. In a tragic twist of irony, I was putting the finishing touches on the story when a mass shooting occurred that made some of the products (bump stocks) I wrote about illegal under federal law. In the time since then, I’ve seen thousands of examples of folks on both sides of the debate consistently misuse terms and get basic facts about the operation of a machinegun, or even a semiautomatic rifle completely wrong. This is somewhat understandable as manufacture of new machineguns for civilian use has been illegal since 1986 when the NFA (National Firearms Act) registry for new machine-guns for the civilian market was closed. As a result, most firearm enthusiasts and even experts who came of age in the past 35 years have little firsthand knowledge of inner workings of machineguns. There are exceptions of course when it comes to military armorers, federally licensed Special Occupational Taxpayers (SOT) who manufacture new machineguns for government use and those of us who read old books and manuals to grasp a better understanding of how things work. To educate the public, I thought I’d take a look at the various ways to make an M-16 from an AR-15.Again, unless you’re an SOT building a post-1986 machinegun, using the information presented to make one of these items is illegal. Please do not break the law. I’d hate to see good gun people go to prison and, even worse, they don’t let you read gun magazines in the federal prison system, or even browse our website!Apart from enlisting in the military, becoming a SWAT officer, or signing up as a private security contractor where you may be issued an M-16 for an extended loan period, your sole recourse for obtaining an M-16 is buying one. With the cost of a transferable M-16 being more than $20,000 these days, this article is intended as a guide to what you’re buying if you’re considering a registered conversion part over a dedicated machinegun. The Right WayWhen most SOTs want to build a real M-16, they obtain the appropriate parts, source a proper receiver, file a Form 2 with the ATF, and when it’s approved, they put it all together.The most common way is to buy the actual M-16 fire control parts and install them in a lower receiver. Most lower receivers need to be modified by drilling a third hole to fit the auto sear.What separates a registered receiver has a third pin hole to house the auto sear.Before you start thinking about becoming an SOT “just to build machineguns,” bear in mind you have to be an actual firearms manufacturer, obtain a Federal Firearms License, Taxpayer ID Number, apply for an SOT status, pay all the appropriate fees, including a couple grand to the State Department for ITAR compliance, and be in the business full time. When you give up your license, however, you need to sell, destroy, or turn in your post sample machineguns.FFL & Class III License from $54.99 at FFL123.comDrop-in Auto SearOne of the first methods of converting an AR to fire full auto is to install a part known as a Drop-In Auto Sear, or DIAS. The DIAS requires an M-16 hammer, selector, and bolt installed in the rifle. The “Drop In” appellation refers to the end-user not having to machine the lower to accommodate an auto sear, as a secondary auto sear is part of the DIAS.A DIAS doesn’t require a third pin hole, though some receivers will require some milling.When a DIAS is installed in an AR lower, the hammer is cocked by the bolt carrier as it moves rearward. The carrier pushes the hammer down and the sear of the DIAS grabs the hammer. As it moves forward again, the carrier catches the top of the sear in the DIAS assembly and releases the hammer.Transferable DIAS are referred to as Registered Drop-In Auto Sears or RDIAS. The “Pre-81” DIASBack in the late ’70s and very early ’80s (in retrospect this may have been the real “glory days” of firearms ownership in the United States), a DIAS was commonly advertised in Shotgun News or Gun List for about $150.They more or less flew under the radar as ARs were still not a very common rifle; there was no internet, and there weren’t legions of firearms owners writing letters to ATF’s Tech Branch for clarification on what was and wasn’t legal.In 1981, BATF issued a formal ruling that these sears (“AR-15 Auto Sear,” “Drop-In Auto Sear,” and “Auto Sear II,”) were considered machinegun conversion parts and any sears made after November 1, 1981, had to be registered as a machinegun. Unlike the recent bump stock fiasco, BATF grandfathered unregistered sears made prior to November 1, 1981.M-16 fire control parts are legal to purchase and own, though we nary see a point unless you have an M-16.However, before you start searching for one on the various auction sites or local gun shows, there’s a catch. You cannot legally possess one if you own an AR-15. Essentially, this rule makes possessing a Pre-81 DIAS useless. It’s kind of like owning a set of keys to a Lamborghini without being able to drive the actual car. A further legal problem is compounded because none of these sears were engraved with a serial number to substantiate a date of manufacture. In court, the burden of proof is placed on the defendant and, thus, the prosecution presume the sear was made well after the grandfathered date. This makes the possession of this little part akin to owning an unregistered machinegun. Bottom line: Don’t do it!Lightning LinkAnother fantastic invention that came about in the 1980s was the “Lightning Link.” Properly known as the S.W.D., Inc. Auto Connector, fewer than 900 of these were manufactured and in the NFA registry prior to May 1986. This is a drop-in part to convert a commercial AR-15 into a fully automatic firearm. There are a few caveats regarding the use of this device, however.In theory, it’s a two-way conversion that’s installed and removed easily. It doesn’t give the shooter select-fire capability. Once it’s installed, the rifle is full-auto only. Not that there’s anything wrong with that! There are several manufacturers making kits to allow select-fire with the Lightning Link by modifying real M-16 fire control parts to function with the Lightning Link in an AR-15. AR-15 Lower Parts Kits from $49.99 at Palmetto Armory AR-15 Lowers from $84.99 at Stag ArmsThe other downside is that it’s a product of its time, meaning when it was designed, there were less than a handful of companies making AR-15s. The market share was largely owned by Colt and their SP-1 version of the AR.That’s right, the Lightning Link only drops into a Colt SP-1 and a handful of other, early civilian-made AR-15s such as Bushmaster, Sendra, Essential Arms, and most PWA pre-ban lower receivers. After 1989, Colt added what’s known as a “High Shelf” in their lower receivers to prevent installation of a Lightning Link. These lowers can work if the shelf is milled away.Many modern lowers have a “Low Shelf,” but they may not be rounded in the rear properly to accommodate a Lightning Link. Again, milling will be required to make it fit.The other challenging part is that the Lightning Link only works with Colt SP-1 bolt carriers. If you have a commercial bolt carrier, or even an M-16 carrier, these will need to be milled to work with the Lightning Link. Lastly, the Lightning Link is a fragile piece of hardware. It’s not uncommon for these to break on extended use, and once they break, you’ve just destroyed an over $15,000 machinegun.How it WorksIn semi-auto mode, the hammer is cocked as the bolt carrier moves rearward. When the carrier returns to the forward position, the hammer is held in this position by the sear located on the forward part of the trigger catching in the sear notch, on the hammer.If you hold the trigger after a shot is fired, the sear will not catch in the hammer’s sear notch when the hammer cocks because the sear is depressed below the arc of the hammer notch.A Lightning Link looks like something someone came up with in their garage, which isn’t terribly far from the truth. Using one in a modern rifle requires some tuning and other work.Because the trigger is being held back, the disconnector hook is pushed forward and in position to catch the hammer, preventing it from following the carrier forward. When the trigger is released, the hammer moves from under the disconnector hook and is caught by the trigger sear in the hammer sear notch, making it necessary to pull the trigger for each shot.When the trigger is held rearward, the sear is below the arc of the hammer notch. The only thing holding the hammer in the cocked position is the disconnector. The Lightning Link works by pulling the disconnector to the rear and releasing the hammer. The Lightning Link lays flat in the lower receiver, with the forward opening fitting over the disconnector’s hook. The upright portion sits between the rear takedown pin post of the upper and the bolt carrier. When the bolt carrier strikes the top of the link, the bottom portion swivels to the rear, moving the body of the link rearward and releases the hammer from the disconnector hook. As the trigger is held rearward, the movement of the bolt carrier continuously cocks the hammer and forward movement of the carrier strikes the upright of the link as the bolt locks in battery, releasing the hammer, and firing the rifle. The sear stops the hammer in the cocked position when the trigger is released.Swift LinkAt first glance, the Swift Link appears to be a little more robust than the Lightning Link and seems to be more user-friendly regarding compatibility with different lower receivers. The only other requirement seems to be the use of an M-16 bolt carrier. It looks like it would work much like the Lightning Link by depressing the disconnector when the bolt closes and releasing the hammer to enable full-auto fire.I have no hands-on experience with this device and don’t even know the name of the original manufacturer. It showed up on a few internet forums and appears to have an origin as the result of a Freedom of Information Act request submitted to the ATF with regard to the October 2017 shooting at Mandalay Bay in Las Vegas. Questions remain as to whether the shooter actually made the device and used it, or if it was the image of a prototype found on his computer.The Coat Hanger MachinegunAn interesting variation of the Swift Link is one that was made by Ben Winslett (a firearms manufacturer and SOT) out of a coat hanger. Inspired by images of the Swift Link, Winslett was searching for suitable materials in order to make a version of his own. He twisted a coat hanger into shape and registered it on a Form 2 as a “Coat Hanger Machinegun.”Yes, that is a bent-up coat hanger, properly registered as a post-sample machinegun.This type of device has been talked about in NFA circles for years, with some referring to it as the “Afghan Coat Hanger Conversion,” presumably because some Afghani fighter got tired of firing AKs and happened upon an AR that he converted using this method; or perhaps it was a PMC that was issued an AR. Regardless, Winslett’s conversion is the first case we’ve seen of one being made legally and legitimately.How it WorksThe Swift Link and the Coat Hanger Machinegun work on a principle similar to the Lightning Link, but in reverse. Rather than playing the game of “capturing the hammer,” these conversions simply push against the disconnector.We really wish 100,000 of these were made and registered before May of '86.As you can see, there are a variety of ways to convert an AR-15 to full auto. Many of these methods were conceived pre-1986, because contrary to popular belief, M-16s weren’t exactly the staple of every gun shop as some revisionists might have you believe. In the past 33 years very little has been done as far as experimentation, and what little that’s been accomplished is almost solely in the realm of SOTs. While some of these registered conversions may sound a little wonky when it comes to timing them, fitting them to a receiver, and in some cases, their fragility, finding one may be the only route to legally obtaining a full-auto AR for under $20,000. These prices are escalating in step with everything else full auto as there are only a finite amount in the NFA registry. At one time, a registered Lightning Link could be had for as little as $200. Thirty years later, they’re going past $15K.This article and more can be found in DIY Guns: RECOIL Magazine's Guide to Homebuilt Suppressors, 80% Lowers, and More.More DIY Articles on RECOILDIY Home Security Systems. DIY Double Barrel Slam Fire Shotgun. Solvent Traps and True DIY Suppressors. DIY High-Vis Targets. DIY 80 Percent Arms: The Condo Lower. DIY Trigger Job on a Springfield Hellcat. Walking through the ATF form 1 eFile process: Death and Taxes. True Gunsmithing: DIY Bolt Action Build. The Anti-G19x: Polymer80's PF940CL. How to Cerakote: a DIY guide.Explore RECOILweb:RECOILtv All Access: Troy & Lead Faucet Tactical Rifle AccessoriesFNH USA - FNX-45Preparedness Month: Bug Out Bag Guns from Student of the GunVideo Surfaces of Brutal Assault on Kenyan Peacekeepers in Somalia NEXT STEP: Download Your Free Target Pack from RECOILFor years, RECOIL magazine has treated its readers to a full-size (sometimes full color!) shooting target tucked into each big issue. Now we've compiled over 50 of our most popular targets into this one digital PDF download. From handgun drills to AR-15 practice, these 50+ targets have you covered. Print off as many as you like (ammo not included). Get your pack of 50 Print-at-Home targets when you subscribe to the RECOIL email newsletter. We'll send you weekly updates on guns, gear, industry news, and special offers from leading manufacturers - your guide to the firearms lifestyle.You want this. Trust Us.
your statement in this article says the burden of proof is on the defence. can you elaborate on this claim since in every other legal situation the burden of proof is on the prosecution. i'm currently thinking of 30 round magazines that were purchased in california during freedom week and how people who had them confiscated had them returned. i'm curious about this claim in the article.
Not a lawyer, but it appears that it is because it's what's called an affirmative defense? You are not denying having the autosear, you'd be claiming that you can legally possess it. As such you'd need to demonstrate that you can, legally. In a similar sense, if assault charges were pressed on you and you claimed self defense, the burden shifts to you to demonstrate you acted in self defense. The prosecution is then burdened with proving this is not the case.
Here is the case citation which puts the burden of production on the defendants. The issue is that the pre-81 exemption applies to the original taxation, it does not apply to post -81 transfers. Courts have repeatedly held that if a pre-81 DIAS is transferred after 81, then it is subject to any current regulations for transfer. U.S. v. Bradley, 892 F.2d 634 (7th Cir. 1990) cited by U.S. v. Cash, 149 F.3d 706 (7th Cir. 1998) (* I am an attorney)
Only if the coat hanger was filed on a Form 1 or Form 2 with BATFE before 1986 as a machine gun. It is the date of registration with BATFE, not the date the raw material was made. Otherwise an old shovel that could be hammered into an AK receiver could be registered too. It is a dumb law that has made no impact on crime.
The coat hanger was assembled as a post-sample machinegun, so pre-86 doesn't matter as it isn't transferable
I lost all of my guns in a house fire and yet to buy any more except a pistol and a shotgun but when I had my ar15 I shot it pretty fast so why gamble on the possibility of jail for conversion of a rifle.
What a bunch of hypocrisy they twist all the laws(not justlaws about guns) around so we get confused about it all...ITS all about the money guys. Iv looked at all the different ways to convert and im sure someone will find a different way to do it just to say it works..thxR.C.S
On correction on the article, "file a Form 2 with the ATF, and when it’s approved, they put it all together." Once BATFE is notified that the SOT manufacture the Title II item, it is considered registered. BATFE does not have to send you the "approved" Form 2 for the SOT to complete manufacturing of the firearm. The Form 2 Rules 5. Submission a. By Mail. The notice shall be filed with the National Firearms Act Division, Bureau of ATF, 244 Needy Road, Martinsburg, WV 25405 b. Facsimile Transmission. Form 2 may also be submitted for approval via facsimile transmission (304) 616-4501 provided that the licensee has filed and affidavit with the NFA Division in accordance with ATF Industry Circular 89-6. c. Submission electronically. Importers and manufacturers who have registered to use ATF's eForms system may file Form 2 electronically via the eForms system. 6. Receipt by NFA Division. Receipt of the notice (Form 2) by the NFA Division will effectuate the registration of the firearms.
Are you sure it makes sense cause If a sot can manufacture a post 86 machine gun for LE and govt. Sales then it makes sense I'm going to have to get in touch w/atf and verify
In order to have a faster rate of fire than real factory full auto, all you need is a positive trigger reset which allows steady positive trigger pressure to release the hammer after the bolt is far enough forward not to interfere with the hammer stroke. My first effort ended up firing at an insane rate so that I heard a louder bang and my firing line friend said "I think it shot twice or more". Actually it dumped a 10 shot mag. The trigger was replaced.
I totally agree that many of these laws are so twisted and ineffective on crime. But I may ask the question, other than simply to exercise our 2a right, the need for full auto is something that evades me, unless you was a 240B then I'm with you. BUt with the current cost of ammo and the increasing media hype that makes the world think that every AR is a machinegun, What is the need for running a full auto? I am a pro 2a and if someone wants to do it, god bless, I just mean in the context of home and personal defence, it seems that semi would be a better option.
The 2A isnt about home protection or hunting, those are benefits. The 2A purpose was to make sure citizens were capable of defending the country from tyranny... you need access to the same technology to accomplish that.
I guess it would depend on who is invading your home. Bad guys (local thieves), or bad guys (federal confiscators).
In thecase of an FFL/SOT Manufacturer, Post sample machineguns manufactured and papered on Form 5320.2 do not need BATFE / NFA Branch approval!. As a manufacturer, you are already licensed to produce them. You are only required to notify NFA Branch that you did manufacture them. That is accomplished via the Form 2!
I was just going to post the same thing! As Michael said, a Form 2 is just notification of the manufacture of a NFA item, and does not require ATF approval.
I'm a gun guy. I own and carry guns every day. But I can't for the life of me understand why you would publish an article on how to do something that is illegal regardless of telling people not to break the law. If you think telling folks not to do something you have just shown them how to do, will stop them from doing it, you are out of your mind. Just plain irresponsible!
